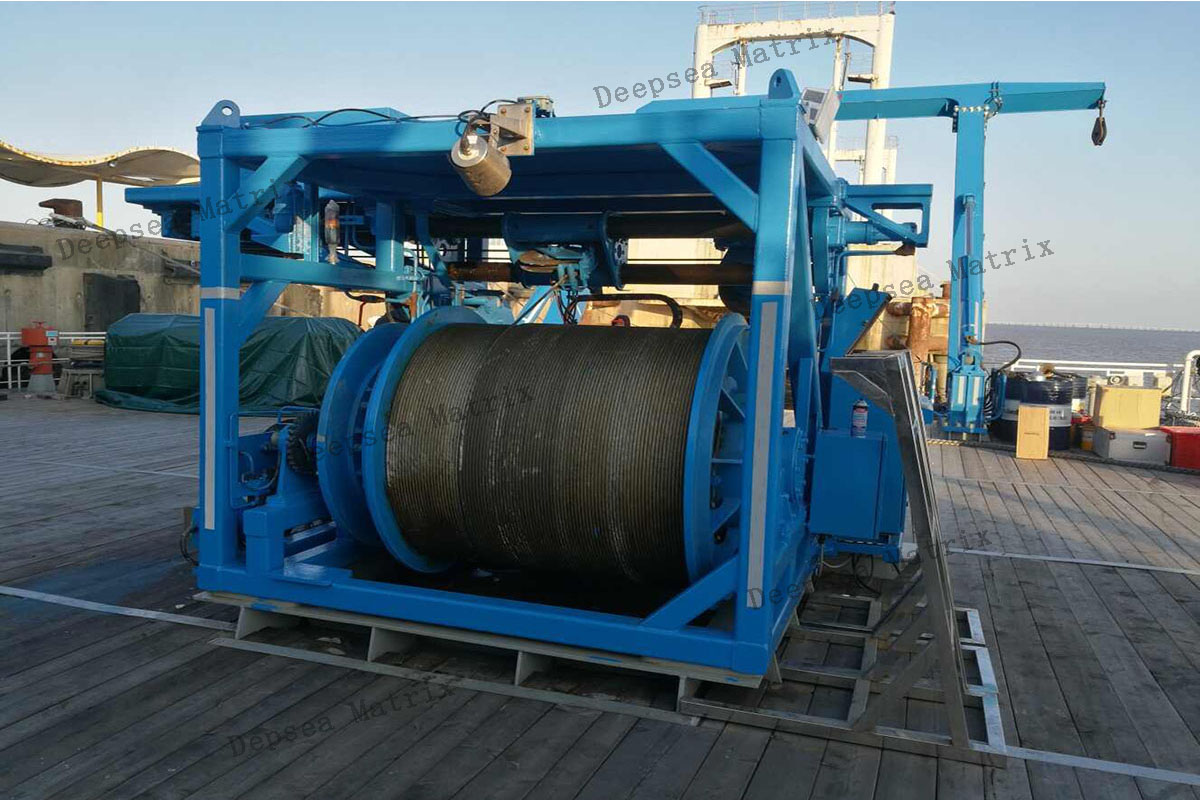

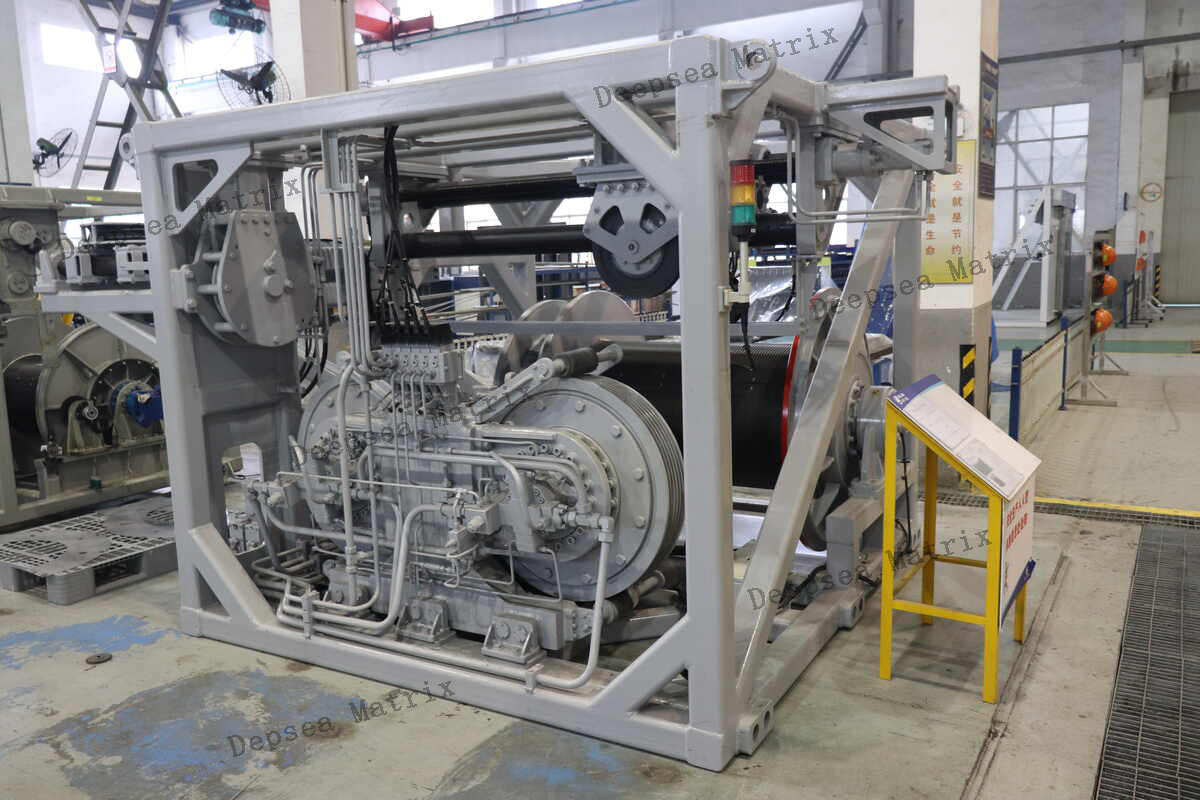

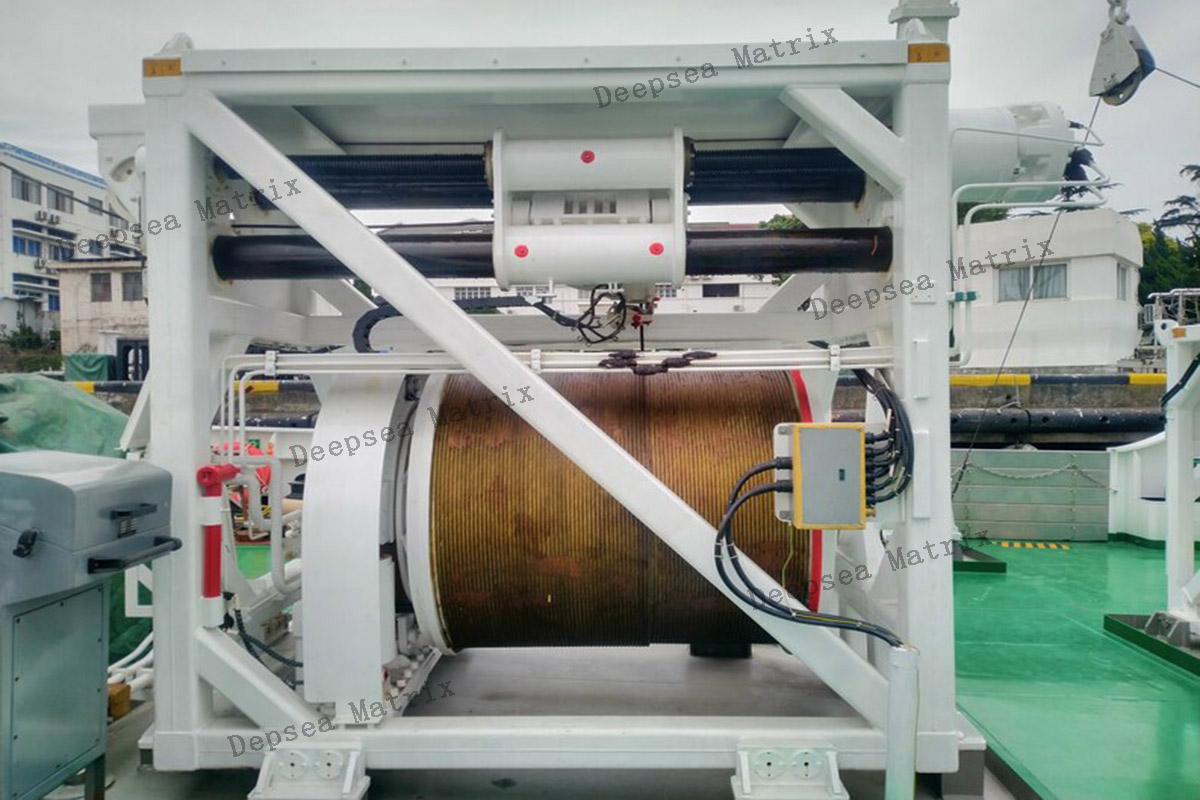

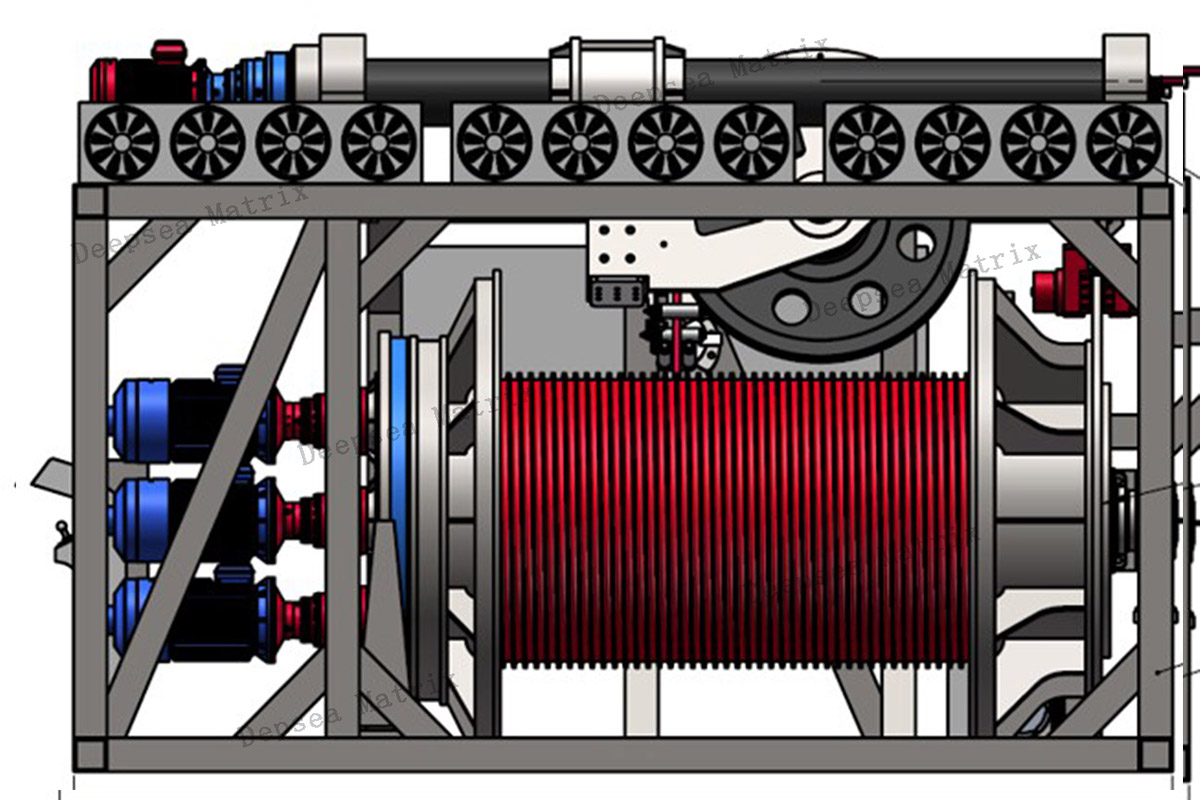

Description:
The geological winch typically uses geophysical steel cables, synthetic fiber cables, or coaxial cables, working in conjunction with a deployment and recovery system. It enables precise positioning of sampling devices in deep-sea environments, and ensures the safe retrieval of collected samples for subsequent analysis.

Basic Parameters:

• Safe Working Load (SWL): 15–30 tons
• Speed Range: 0–120 m/min
• Cable Diameter: 14–22 mm
• Maximum Cable Length: up to 15,000 meters

Key Features:

• High control precision with accurate cable spooling
• Supports local, remote, and centralized control modes
• Provides multiple real-time display functions including cable length, speed, and tension
