Heavy-duty ROV umbilical deployment at sea China manufacture

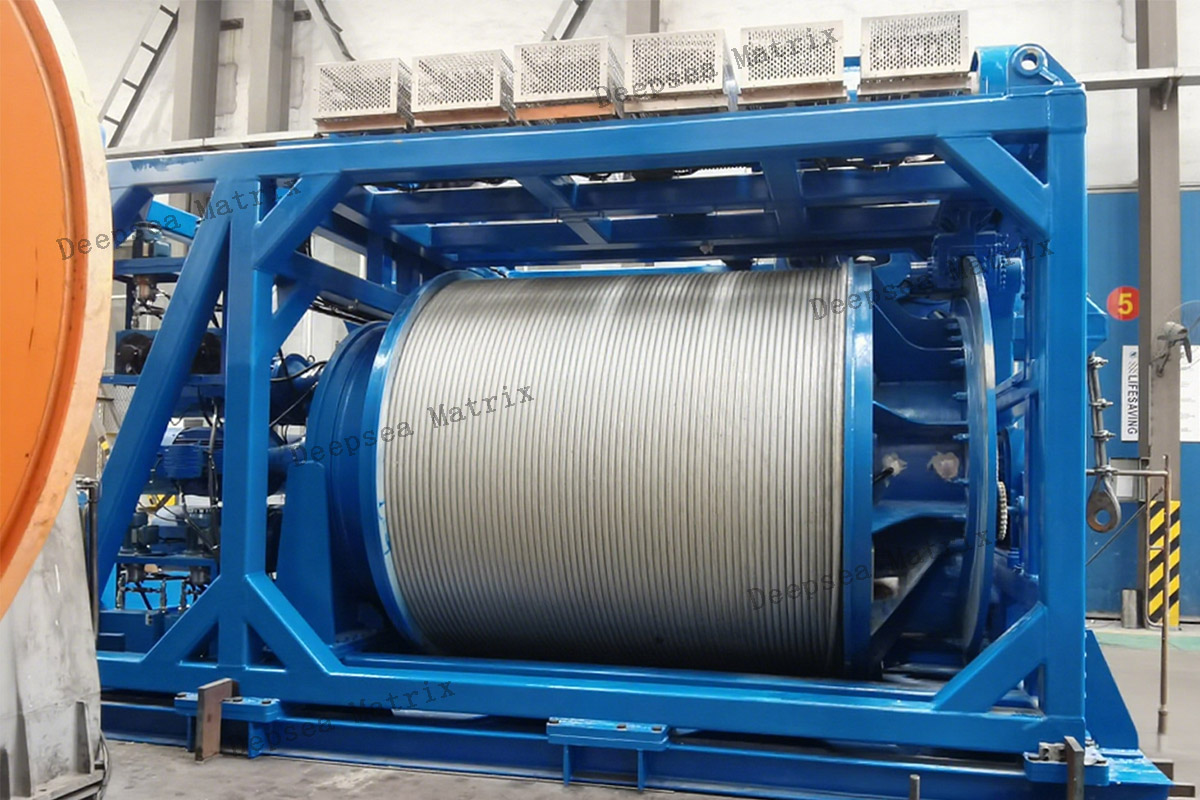

Precision spooling of armored umbilical Chinese manufacture
ROV winch operating in rough sea conditions

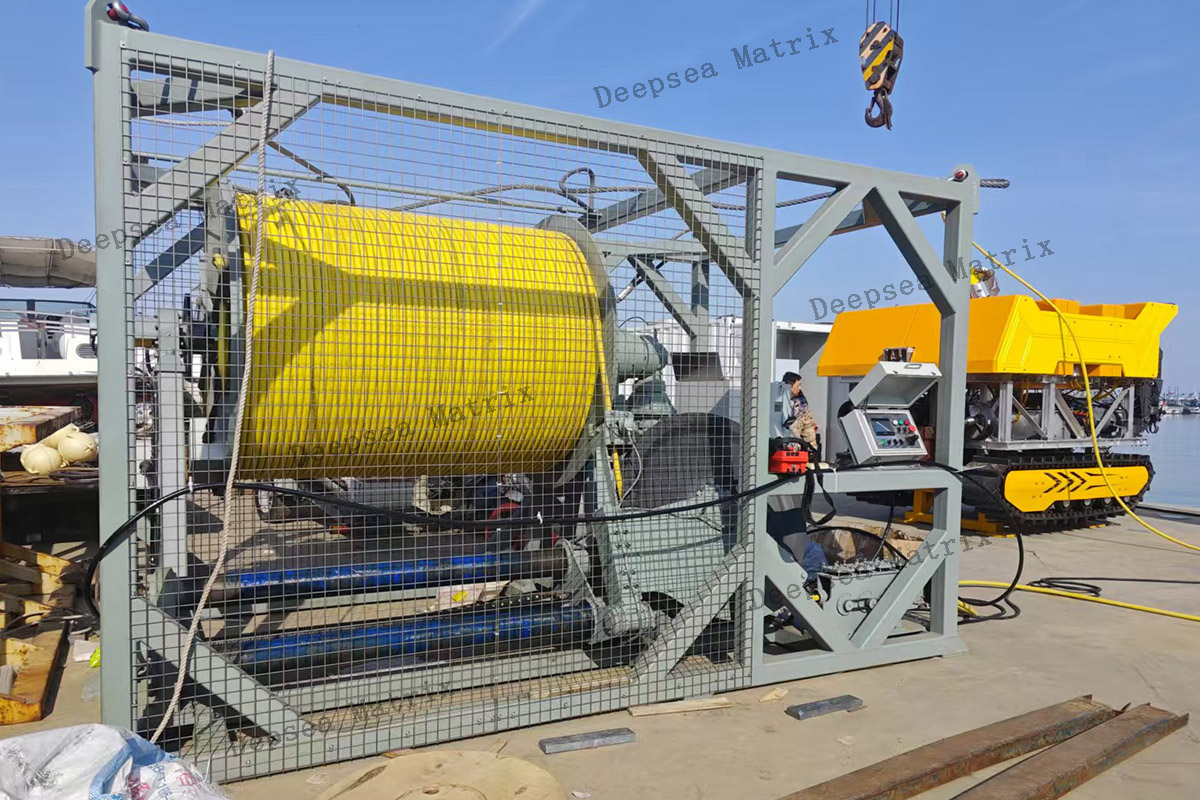

Winch integrated with ROV launch system China manufacture

ROV Winch

  • Application:
    Launching and recovering Remotely Operated Vehicles (ROVs) used in underwater inspection, maintenance, sampling, and intervention tasks | Suitable for both work-class and observation-class ROVs operating in offshore oil & gas, marine research, subsea engineering, and salvage operations
  • Basic Parameters (Typical Configuration):
    • Safe Working Load (SWL): 1–25 tons
    • Speed Range: 0–100 m/min
    • Cable Diameter: 20–40 mm
    • Maximum Cable Length: Up to 6,000 meters
    • Cable Type: Armored electro-optical or hybrid umbilical cable
    • Drive System: Hydraulic or electric (variable frequency drive)
    • Control Interface: Local, remote, or fully integrated into LARS systems
  • Key Features:
    • Precise control and smooth cable payout/retrieval
    • Real-time monitoring of cable length, speed, and tension
    • Constant tension control to protect ROV in dynamic sea states
    • Integrated with launch and recovery system (LARS)
    • Capable of power, video, and telemetry transmission via umbilical
    • Weatherproof and corrosion-resistant for harsh marine environments

Description:
The ROV winch is an essential component in deep-sea robotics operations, providing reliable support for the deployment and recovery of tethered underwater vehicles. Designed to handle electro-optical or hybrid umbilical cables, the winch system ensures secure mechanical support while maintaining uninterrupted data, video, and power transmission. With robust construction, high-torque drives, and advanced tension management features, the ROV winch ensures stable and safe operations during complex subsea missions.
