Electro-optical cable winch for deep sea

Fiber optic composite cable winch Chinese manufacture

Cable winch for video and power transmission

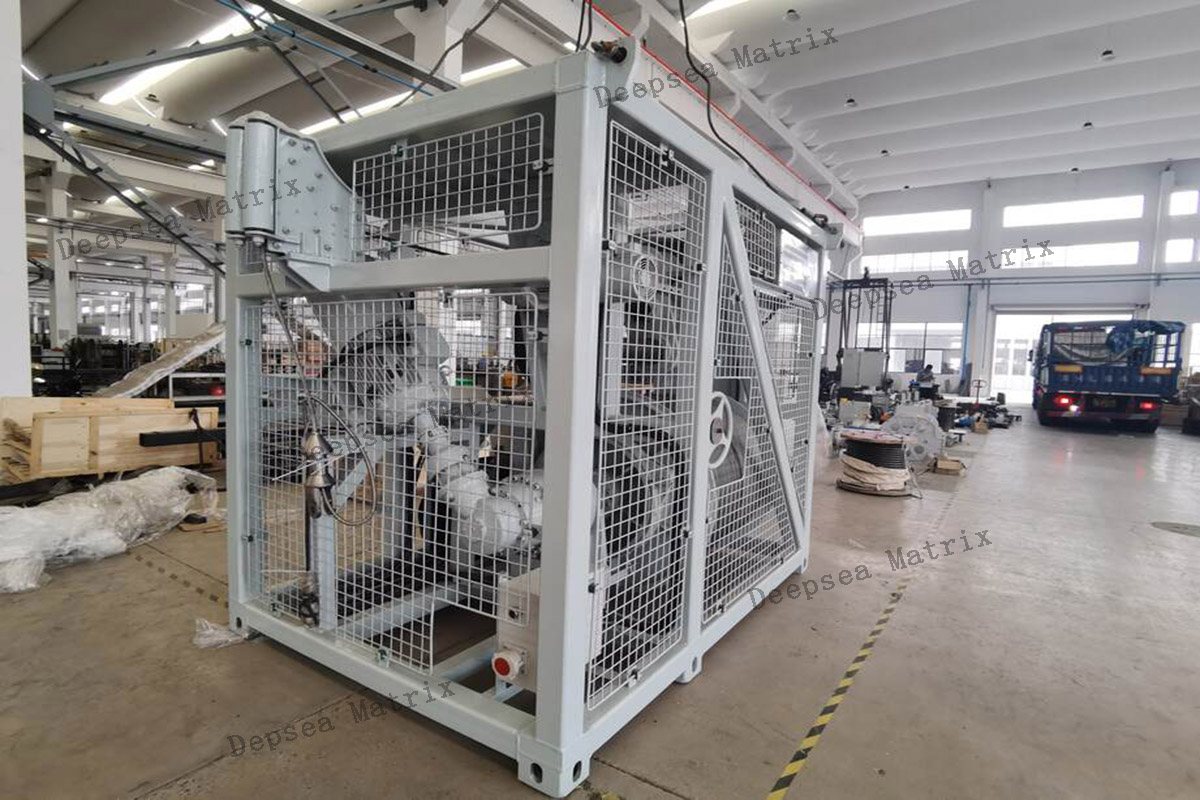

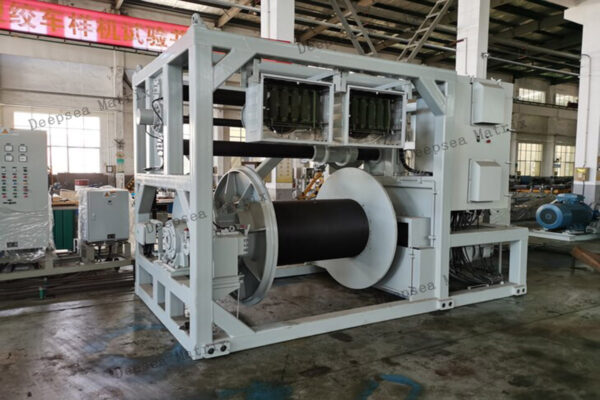

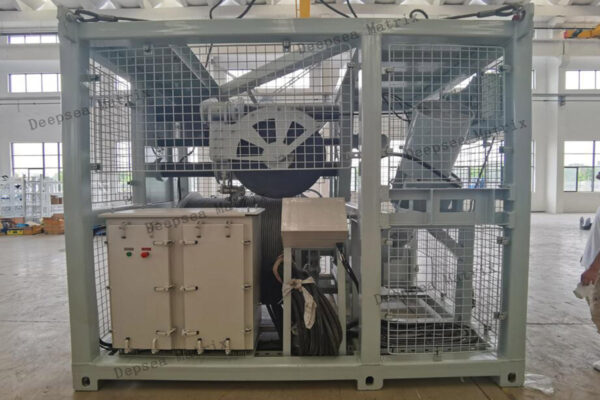

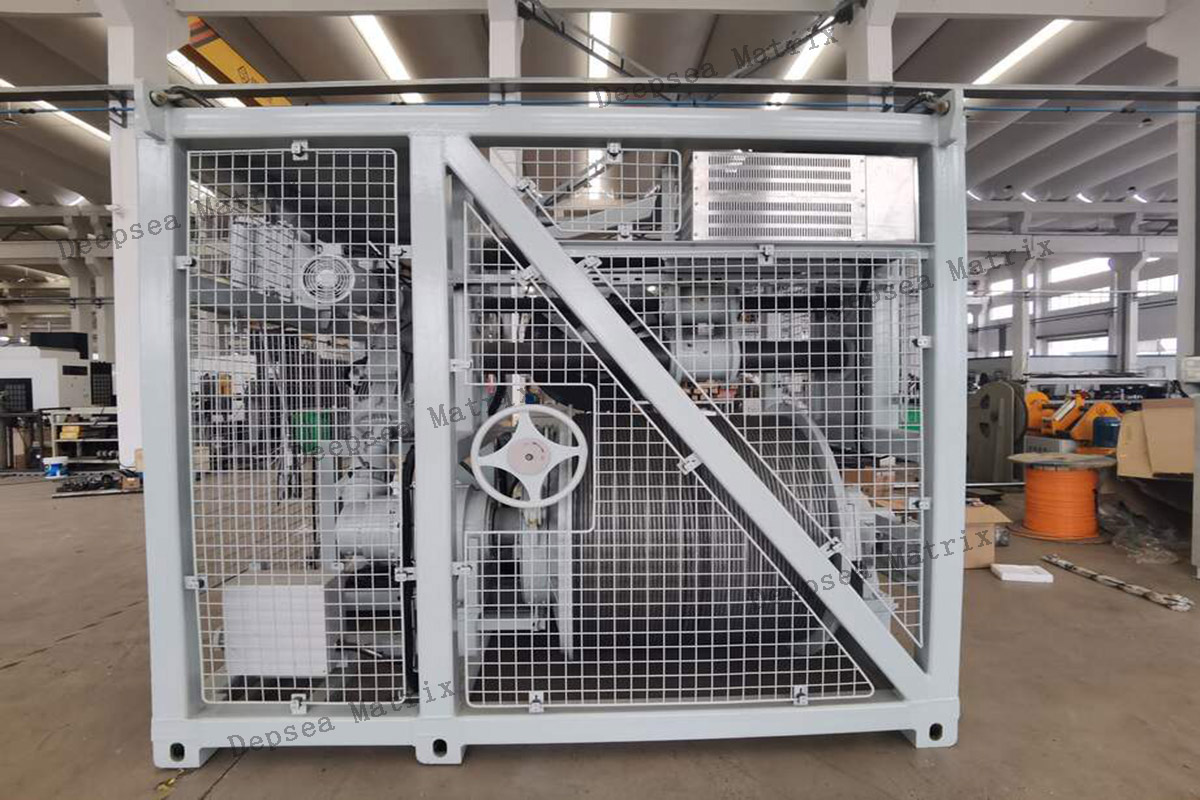

Electro-Optical Cable Winch

Application:
Primarily used with deep-sea exploration equipment requiring high-capacity data and power transmission, such as TV grab samplers, acoustic towfish, small ROVs, and shallow seabed drills.

Basic Parameters:

Safe Working Load (SWL): 10–15 tons
Speed Range: 0–120 m/min
Cable Diameter: 17.3–22 mm
Maximum Cable Length: Up to 12,000 meters

Key Features:

High control precision with accurate cable spooling
Supports local, remote, and centralized control modes
Real-time display of cable length, speed, and tension
Capable of transmitting power and video signals during operation

Description:
The electro-optical composite cable winch is specifically designed to work with cables that integrate both optical fibers and electrical conductors. This enables simultaneous power delivery and high-speed video/data transmission, essential for real-time monitoring and control of deep-sea equipment. Working in tandem with a precise launch and recovery system, the winch ensures safe and stable deployment of observation and sampling tools to designated depths for visual inspection and seabed exploration.
